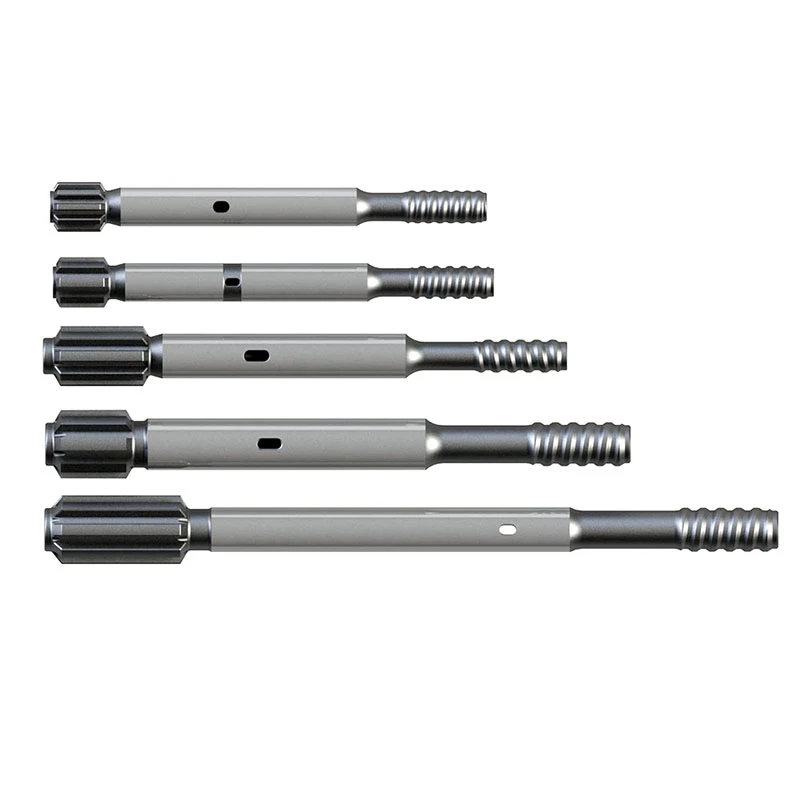

KATDRILLS Shank Adapters
Shank adapter is designed to transmit power from rock drill piston to extension drill rod and finally to drill bit. When deploying, one side of shank adapter is connected to drill rod, while the other side should be connected with coupling or extension drill. Shank adapter can be deployed for drilling duties in tunneling, construction, mining, quarrying, etc.
Parameters
| Steel grade | 23CrNi3Mo (Sanbar 64) |
| 1.Thread type | R25, R28, R32, R35, R38, T38, T45, T51, etc. |
| 2. Diameter | 32mm-70mm |
| 3. Length | 273mm-885mm |
| 4.Applicable rock drill brand | Sandvik HL500, HL510, HL700, HL800, HL1000, etc. |
We implement strict quality control throughout the entire production process and follow our internal "RANKING Standards" to ensure that every product delivered to you is of exceptional quality.
Shank adapter Sandvik
|
SANDVIK – HLX 1, RD 106 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
R22 |
265 |
10.43 |
28 |
1.1 |
|
|
R25 |
265 |
10.43 |
28 |
1.1 |
|
|
SANDVIK – HL 300 (MALE) |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
R32 |
400 |
15.75 |
32 |
1.25 |
|
|
SANDVIK – HL 300 S (FEMALE) |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
R32 |
245 |
9.65 |
45 |
1.75 |
|
|
SANDVIK – RD 308, RD 314, RD 414, HLX 3 (F) (FEMALE) |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
R32 |
205 |
8.07 |
45 |
1.75 |
|
|
SANDVIK – HLR 438 L, 438 T |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
R32 |
380 |
14.96 |
38 |
1.5 |
|
|
R38 |
380 |
14.96 |
38 |
1.5 |
|
|
T38 |
380 |
14.96 |
38 |
1.5 |
|
|
SANDVIK – HLX 5, HLX 5 T, HFX 5 T (10 SPLINES) |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
R32 |
500 |
19.69 |
45 |
1.75 |
|
|
R38 |
500 |
19.69 |
45 |
1.75 |
|
|
T38 |
500 |
19.69 |
45 |
1.75 |
|
|
T45 |
500 |
19.69 |
45 |
1.75 |
|
|
R38 |
575 |
22.64 |
45 |
1.75 |
|
|
T38 |
600 |
23.62 |
45 |
1.75 |
|
|
T45 |
600 |
23.62 |
45 |
1.75 |
|
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
R32 |
750 |
29.53 |
45 |
1.75 |
|
|
T38 |
750 |
29.53 |
45 |
1.75 |
|
|
T45 |
750 |
29.53 |
45 |
1.75 |
|
|
SANDVIK – HLX 5 PE-45 (8 SPLINES) |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
R32 |
575 |
22.64 |
45 |
1.75 |
|
|
T35 |
575 |
22.64 |
45 |
1.75 |
|
|
T38 |
575 |
22.64 |
45 |
1.75 |
|
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
R32 |
735 |
28.94 |
45 |
1.75 |
|
|
R38 |
735 |
28.94 |
45 |
1.75 |
|
|
T38 |
735 |
28.94 |
45 |
1.75 |
|
|
T45 |
735 |
28.94 |
45 |
1.75 |
|
|
SANDVIK – HL 500-38, 510-38 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
R32 |
550 |
21.65 |
38 |
1.5 |
|
|
R38 |
550 |
21.65 |
38 |
1.5 |
|
|
T38 |
550 |
21.65 |
38 |
1.5 |
|
|
SANDVIK – HL 500-45, 510-45 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
T38 |
550 |
21.65 |
45 |
1.75 |
|
|
T45 |
550 |
21.65 |
45 |
1.75 |
|
|
SANDVIK – HL 500 S-38, 510 S-38, 510 B, 510 LH |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
R32 |
450 |
17.72 |
38 |
1.5 |
|
|
T35 |
450 |
17.72 |
38 |
1.5 |
|
|
R38 |
450 |
17.72 |
38 |
1.5 |
|
|
T38 |
450 |
17.72 |
38 |
1.5 |
|
|
R38 |
500 |
19.69 |
38 |
1.5 |
|
|
SANDVIK – HL 510 S-45, 550 SUPER M92, 560 SUPER |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
R32 |
500 |
19.69 |
45 |
1.75 |
|
|
R38 |
500 |
19 69 |
45 |
1 75 |
|
|
T38 |
500 |
19.69 |
45 |
1.75 |
|
|
SANDVIK – RD 520, 525 (10 SPLINES) |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
R38 |
525 |
20.67 |
45 |
1.75 |
|
|
T38 |
525 |
20.67 |
45 |
1.75 |
|
|
R32 |
600 |
23.62 |
45 |
1.75 |
|
|
T38 |
600 |
23.62 |
45 |
1.75 |
|
|
R32 |
745 |
29.33 |
45 |
1.75 |
|
|
T38 |
745 |
29.33 |
45 |
1.75 |
|
|
SANDVIK – RD 520 PE 45, 525 PE-45 (8 SPLINES) |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
R32 |
600 |
23.62 |
45 |
1.75 |
|
|
T38 |
600 |
23.62 |
45 |
1.75 |
|
|
R32 |
745 |
29.33 |
45 |
1.75 |
|
|
T35 |
745 |
29.33 |
45 |
1.75 |
|
|
T38 |
745 |
29.33 |
45 |
1.75 |
|
|
SANDVIK – HL 600-45, 600 S-45 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
T38 |
600 |
23.62 |
45 |
1.75 |
|
|
T45 |
600 |
23.62 |
45 |
1.75 |
|
|
SANDVIK – HL 600-52 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
T45 |
650 |
25 59 |
52 |
2 05 |
|
|
T51 |
650 |
25.59 |
52 |
2.05 |
|
|
SANDVIK – HL 650-45, 700-45, 700 T-45, 710-45, 800 T-45, 810 T-45 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
T38 |
600 |
23.62 |
45 |
1.75 |
|
|
T45 |
600 |
23.62 |
45 |
1.75 |
|
|
SANDVIK – HL 650-52, 700-52, 700 PE-52, 700 S-52, 710-52, 710 PE-52, 710 S-52, SANDVIK – 710 SPE-52, 800 T-52, 800 PE-52, 810 T-52, HF 810 T-5210 SPE-52, 800 T-52, 800 PE-52, 810 T-52, HF 810 T-52 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
T38 |
600 |
23.62 |
52 |
2.05 |
|
|
T45 |
600 |
23 62 |
52 |
2 05 |
|
|
XT45 * |
600 |
23 62 |
52 |
2 05 |
|
|
T51 |
600 |
23.62 |
52 |
2.05 |
|
|
XT51 * |
600 |
23.62 |
52 |
2.05 |
|
|
SANDVIK – TAM 750 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
R32 |
380 |
14.96 |
44 |
1.73 |
|
|
R38 |
380 |
14.96 |
44 |
1.73 |
|
|
T38 |
380 |
14.96 |
44 |
1.73 |
|
|
T45 |
380 |
14.96 |
44 |
1.73 |
|
|
R32 |
446 |
17.56 |
44 |
1.73 |
|
|
R38 |
446 |
17.56 |
44 |
1.73 |
|
|
T38 |
446 |
17.56 |
44 |
1.73 |
|
|
T45 |
446 |
17.56 |
44 |
1.73 |
|
|
SANDVIK – HL 844 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
R38 |
450 |
17.72 |
44 |
1.73 |
|
|
T38 |
450 |
17.72 |
44 |
1.73 |
|
|
T45 |
450 |
17.72 |
44 |
1.73 |
|
|
SANDVIK – HL 850 S (SIDE FLUSH) |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
T45 |
670 |
26.38 |
52 |
2.05 |
|
|
T51 |
670 |
26.38 |
52 |
2.05 |
|
|
SANDVIK – HL 1000-52, 1000 S 52, 1010-52, 1010 S-52 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
T45 |
590 |
23.23 |
52 |
2.05 |
|
|
T51 |
590 |
23.23 |
52 |
2.05 |
|
|
T45 |
670 |
26 38 |
52 |
2.05 |
|
|
T51 |
670 |
26.38 |
52 |
2.05 |
|
|
SANDVIK – HL 1000-60, 1010-60 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
ST58 |
670 |
26.38 |
60 |
2.36 |
|
|
GT60 |
670 |
26.38 |
60 |
2.36 |
|
|
SANDVIK – HL 1000 PE-65, 1010 PE-65, 1060 T/PE-65, 1500 T/PE-65, 1560 T/PE-65 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
T51 |
760 |
29.92 |
65 |
2.56 |
|
|
ST58 |
760 |
29.92 |
65 |
2.56 |
|
|
XT60 * |
760 |
29.92 |
65 |
2.56 |
|
|
GT60 |
760 |
29.92 |
65 |
2.56 |
|
|
T-WiZ60 |
760 |
29.92 |
65 |
2.56 |
|
|
SANDVIK – HL 1000 T-80, 1010 T-80 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
GT60 |
760 |
29.92 |
80 |
3.15 |
|
|
SANDVIK – HL 1500-60, 1500 T 60 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
ST58 |
710 |
27.95 |
60 |
2.36 |
|
|
T51 |
760 |
29.92 |
60 |
2.36 |
|
|
GT60 |
760 |
29.92 |
60 |
2.36 |
|
|
SANDVIK – HL 1500-80, 1560 T-80, 1060 T-80, HF 1560 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
ST58 |
635 |
25 |
80 |
3.15 |
|
|
ST68 |
635 |
25 |
80 |
3.15 |
|
|
GT60 |
760 |
29.92 |
80 |
3.15 |
|
|
XT51 * |
860 |
33.86 |
80 |
3.15 |
|
|
SANDVIK – HL 1500 T/PE-90, 1500 ST/PE-90, 1560 T/PE-90, 1560 ST/PE-90 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
GT60 |
760 |
29.92 |
90 |
3.54 |
|
|
SANDVIK – RD 1635CF-80 |
|||||
|
|
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
||
|
mm |
In. |
mm |
In. |
||
|
GT60 |
760 |
29.92 |
80 |
3.15 |
|
Shank Adapters Application
Shank adapters stand as a core component in diverse drilling operations, acting as the vital connection that transmits power from rock drills to drill strings. Engineered for sturdiness and precision, they deliver consistent, high-efficiency performance even in the harshest drilling conditions.
Blasting Hole Drilling Applications: As a foundational tool for blast hole drilling across multiple sectors, shank adapters effectively convey the high-frequency impact force and rotational torque needed to penetrate hard rock formations, drilling accurate boreholes that underpin controlled blasting in key fields:
Tunneling: A must-have for tunnel excavation in large-scale infrastructure construction projects
Constructin: Utilized in foundation engineering, road construction and other major development initiatives
Mining: Critical for ore recovery in both underground mining operations and open-pit mining sites
Quarrying: Applied to rock fragmentation for aggregate manufacturing and natural stone extraction
