Products Description

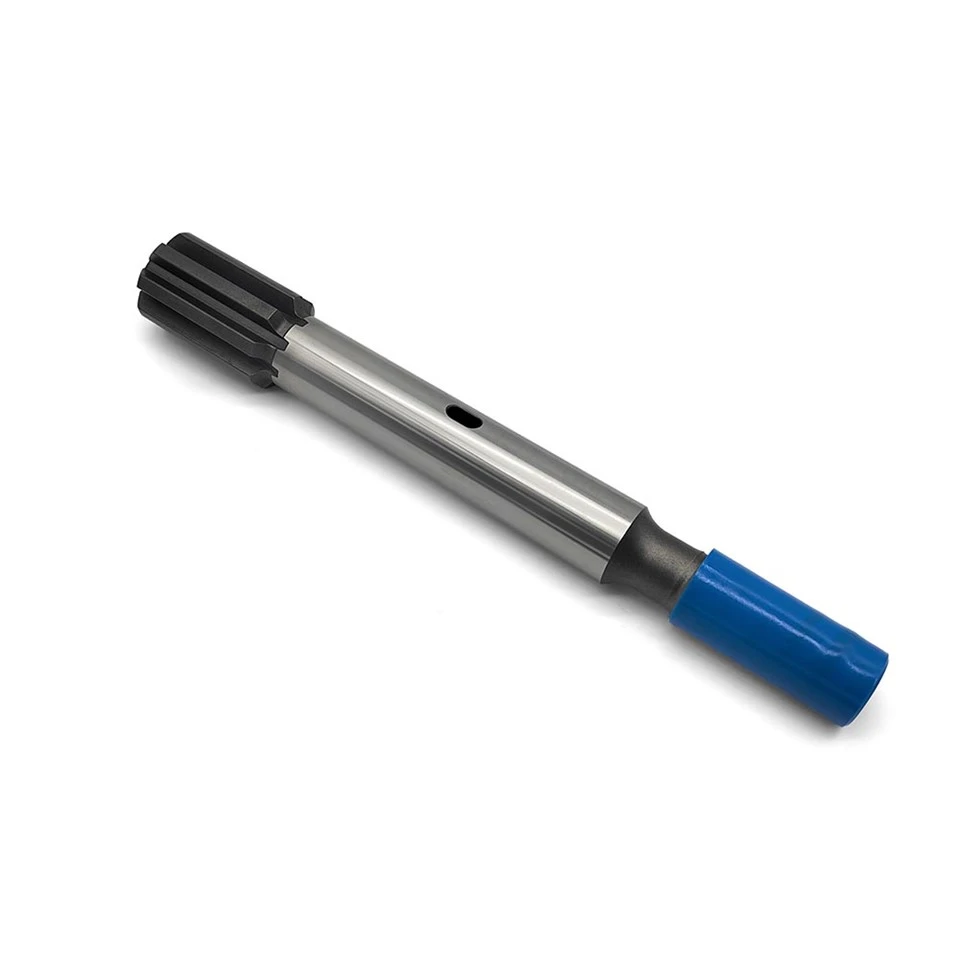

KATDRILLS Drill Shank Adapters
Drill Shank adapter is designed to transmit power from rock drill piston to extension drill rod and finally to drill bit. When deploying, one side of shank adapter is connected to drill rod, while the other side should be connected with coupling or extension drill. Shank adapter can be deployed for drilling duties in tunneling, construction, mining, quarrying, etc.
Parameters
| Steel grade | 23CrNi3Mo (Sanbar 64) |
| 1.Thread type | R25, R28, R32, R35, R38, T38, T45, T51, etc. |
| 2. Diameter | 32mm-70mm |
| 3. Length | 273mm-885mm |
| 4.Applicable rock drill brand | Atlas Copco, Epiroc, Tamrock, Ingersoll Rand, Boart Longyear, Furukawa, Montabert, Soonsan, Everdigm, etc. |
We implement strict quality control throughout the entire production process and follow our internal "RANKING Standards" to ensure that every product delivered to you is of exceptional quality.
|
Brand |
Drill Model Series (Detailed) |
|

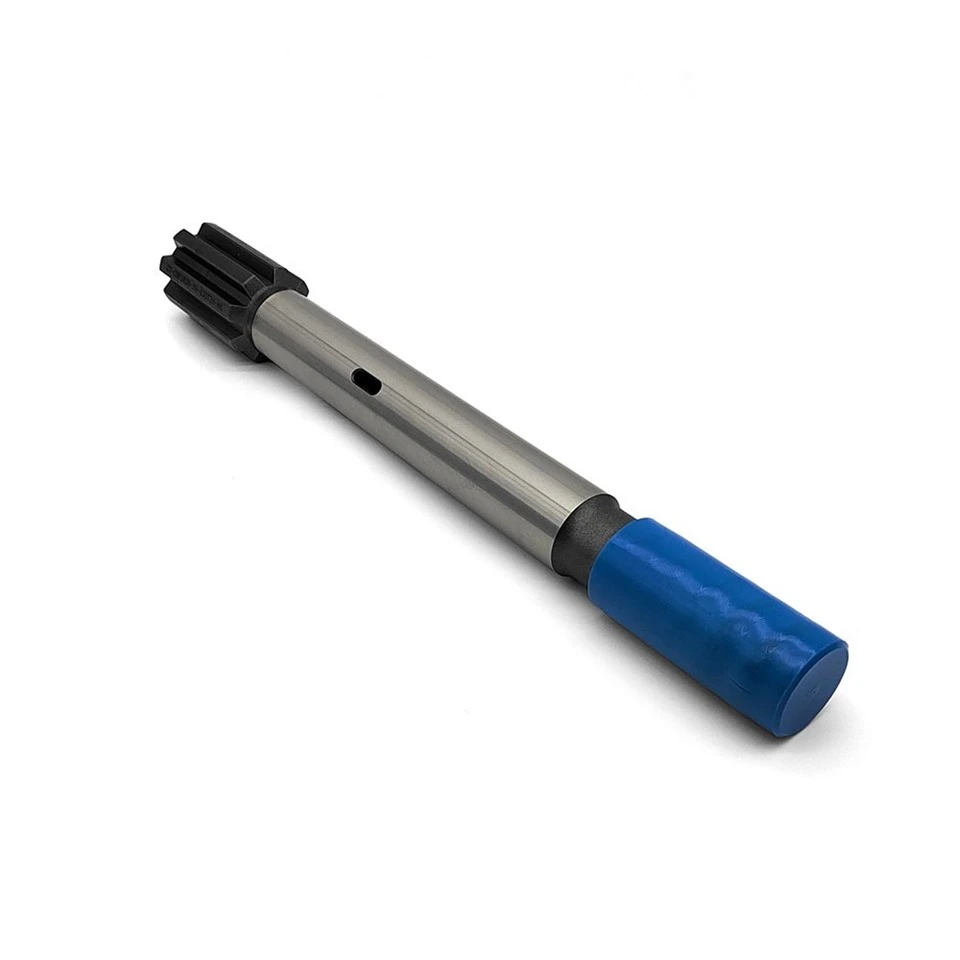

Epiroc / Atlas Copco |
BBC 42, BBC 43, BBC 44, BBC 45, BBC 100, BBC 51, BBC 52, BBC 54, BBC 120, BBE 56U2, BBE 57, BBE 5701, COP 1028, COP 1036, COP 1038, COP 1238, COP 1132, RR11 MALE & FEMALE, COP 1140, COP 1435, SC14, RR14, COP 1240, COP 1640, COP 1840, COP 1850, 2550, SC16, SC19, SC25HF, COP 1240EX, COP 1640EX, COP 1 |
|

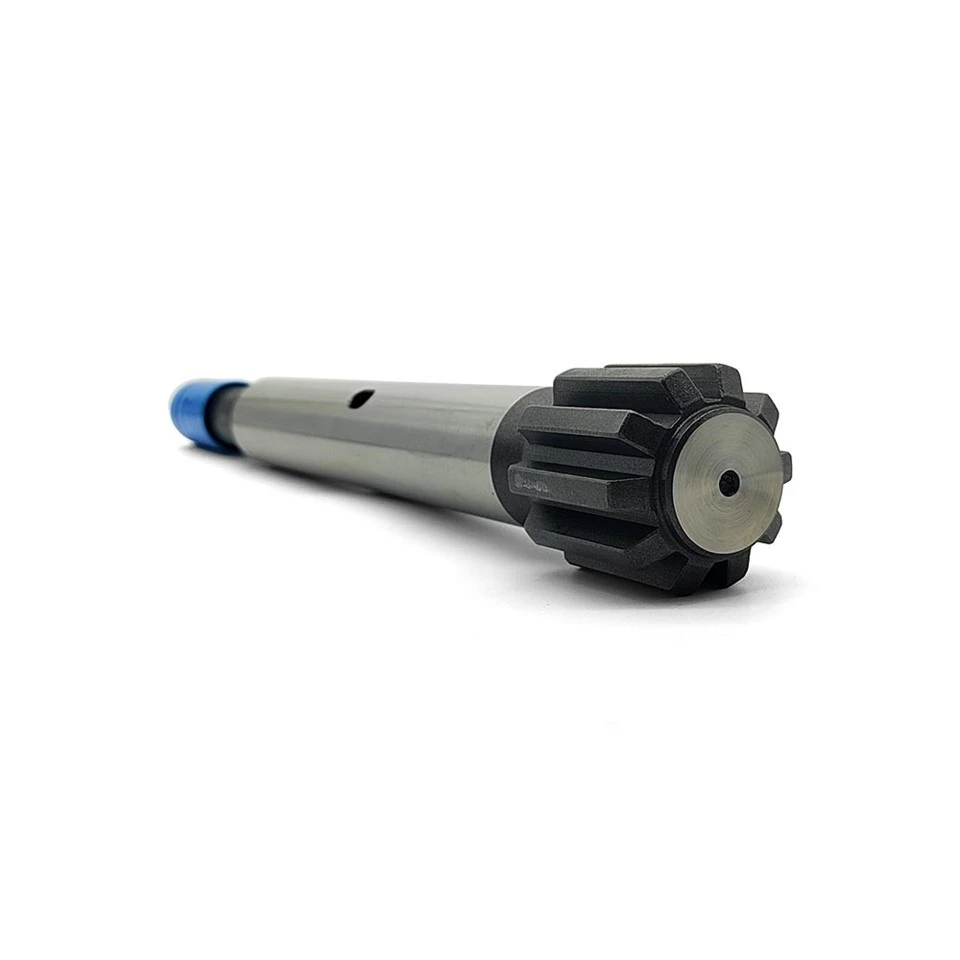

Sandvik / Tamrock |
HL 300, HL 300 S FEMALE, HL 500-38, HL 510-38, HL 538 BL, HL 550 S, HL 500-45, HL 510-45, HL 500 S-38, HL 510 S-38, HL 510 B, HL 510 LH, HL 510 S-45, HL 550 SUPER M92, HL 560 SUPER, HL 600-45, HL 650-45, HL 700-45, HL 700 T-45, HL 710-45, HL 800 T-45, HL 810 T-45, HL 650-52, HL 700-52, HL 700 PE-52, HL 700 S-52, HL 710-52, HL 710 PE-52, HL 710 S-52, HL 710 SPE-52, HL 800 T-52, HL 800 PE-52, HL 810 T-52, HF 810 T-52, HL 844, HL 1000-52, HL 1000 S-52, HL 1010-52, HL 1010 S-52, HL 1000-60, HL 1010-60, HL 1000 PE-65, HL 1500 T / PE-65, HL 1560 T / PE-65, HL 1010 PE-65, HL 1060 T / PE-65, HL 1560, HL 1560 PE, HL 1000 T-80, HL 1010 T-80, HL 1500-60, HL 1500 T-60, HL 1500-80, HL 1560 T-80, HL 1060 T-80, HF 1560, Shoulder drive, HL 1500 T / PE-90, HL 1500 ST / PE-90, HL 1560 T / PE-90, HL 1560 ST / PE-90, Shoulder drive, HLR 438 L, HLR 438 T, HLR 438 LS, HLX 1, RD 106, HLX 5, HLX 5 T, HFX 5 T, 10 Splines, HLX 5 PE-45, 8 Splines, RD 308, RD 314, RD 414 HLX 3 (F), RD 308, RD 314, RD 414 HLX 3 (M), RD 520, RD 525, 10 Splines, RD 520, RD 525 PE-45, 8 Splines, RD 900, RD 900 PE, RD 900 PE/RP, RD 1635 CF, RD 1635 CF-80, TAM 750 |
|
Furukawa |
HD 200, M 120, HD 260, HD 300, HD 500, HD 609, HD 612, HD 612 QED, HD 615, HD 709, HD 709 QED, HD 712, HD 712 QED, HD 715, HD 715 QED, HD 822 QED, HD 826 QED, HD 836, HD 836 QED, PD 200R, PD 200 |
|
Montabert |
HC 20 MALE & FEMALE, HC 25 MALE & FEMALE, HC 28 MALE & FEMALE, HC 40, HC 50 MALE & FEMALE, HC 80, HC 90, HC 105, HC 108, HC 109, HC 120, HC 150, HC 80 RP, HC 105 RP, HC 107 RP, HC 108 RP, HC 109 RP, HC 95, HC 95 SA, HC 95 R, HC 95 LM, HC 95 LQw, HC 110 CA / CS, HC 110 MT, HC 112 LH, HC 120 RP, HC 150 RP, HC 155 RP, HC 158 RP, HC 160, HC 170, HC 200 A, LC 50 (R), TA 35 |
|
Ingersoll Rand |
350, EVL 130, VL 140, HYDRASTAR 200 FEMALE, URD 475A, URD 550, VL 120, F16, YD 90 M, YH 60, YH 65, YH 70, YH 80, YH 65 RP, YH 70 RP, YH 80 RP, YH 80 A, YH 95 RP, YH 100 RP, YH 110 V, YH 135 |
Contact us for more details.
Application
Shank adapters stand as a core component in diverse drilling operations, acting as the vital connection that transmits power from rock drills to drill strings. Engineered for sturdiness and precision, they deliver consistent, high-efficiency performance even in the harshest drilling conditions.
Blasting Hole Drilling Applications: As a foundational tool for blast hole drilling across multiple sectors, shank adapters effectively convey the high-frequency impact force and rotational torque needed to penetrate hard rock formations, drilling accurate boreholes that underpin controlled blasting in key fields:
Tunneling: A must-have for tunnel excavation in large-scale infrastructure construction projects
Constructin: Utilized in foundation engineering, road construction and other major development initiatives
Mining: Critical for ore recovery in both underground mining operations and open-pit mining sites
Quarrying: Applied to rock fragmentation for aggregate manufacturing and natural stone extraction
Features
Shank adapters are core components in drilling operations, serving as the critical connection between a drill rig's percussion mechanism and the drill string. Engineered for optimal energy transfer, they efficiently convey impact power, rotational torque and feed force, directly ensuring peak performance throughout the drilling process.
Uncompromising Precision & Reliability
Our shank adapters are crafted from high-grade raw materials and finished with precision CNC machining, guaranteeing exact dimensional specifications and a perfect fit with mating components. This rigorous manufacturing process, paired with advanced heat treatment technologies, delivers unrivaled precision and structural reliability-an essential foundation for consistent, uninterrupted drilling operations. The seamless fit and stable performance minimize downtime and maintenance costs caused by component mismatch, laying a solid foundation for cost-effective drilling work.
Elevated Surface Hardness & Wear Resistance
A specialized carburizing process is applied to the surface of our shank adapters, dramatically boosting surface hardness and endowing the products with superior wear resistance. This enhanced surface performance maximizes overall durability, enabling an extended service life even when operating in the most severe, highly abrasive drilling environments. Fewer replacements and longer service cycles directly reduce the total operational cost of drilling projects.
Outstanding Cost-Effectiveness
We balance premium manufacturing, exceptional performance and competitive pricing to deliver shank adapters with unbeatable cost-effectiveness. Our products combine long service life, low maintenance demands and high operational efficiency, ensuring you get maximum return on investment. Whether for small-scale construction or large-scale mining and quarrying operations, our shank adapters provide stable, high-quality performance at a reasonable cost, making them a cost-efficient choice for all your drilling needs.
