Top Hammer Drilling Tools
Super Rock supplies a range of top hammer drilling tools, including threaded button bits, threaded drill rods, drill tubes, shank adapters and coupling components. Our threaded button bits cover diameters from 32 to 152 mm, with 15 thread specifications, while our threaded drill rods are available in lengths from 600 to 6100 mm.
We offer different bit face designs, carbide button configurations, rod profiles and connection options for different drilling tool requirements.
-
Threaded Button BitThread Size: R22, R25, R28, SR28, R32, SR32, R35, SR35, R38, T38, T45, T51, ST58, GT60, ST68read more
Head diameters: 32mm - 152mm
Face designs: Flat face, Drop center, Power... -
Threaded Drill RodThreaded drill rod includes Hex. drifter rod,Shank end rod, Round drifter rod, Hex. Speedrod, Round extension rod, Round Speed rod, Round guide rod, Guide tuberead more
-
Shank Adapter EpirocSHANK ADAPTER is compatible with the entire range of EPIROC rock drills. Such as COP1838, COP1638, COPread more
-

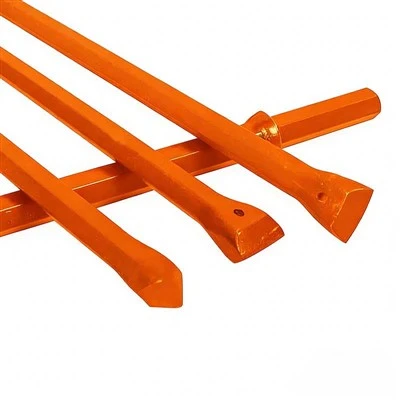

Integral Drill RodOur Integral Drill Rods are forged from premium-grade alloy steel, featuring a one-piece integrated structure that combines drill bit, rod body and shank into a unified, heavy-duty component.read more
-
GT60 Drill RodSteel grade: 23CrNi3Mo (Sanbar 64) Standard lengths: 3.6 m / 4.2 m / 6.0 m (12 ft / 20 ft imperial options) GT60 is a male/female (MF) drill rod built for top-hammer rock drilling. It adopts a...read more
-
T51 Retrac BitThread: T51 Available Diameter: 89 mm, 102 mm, 115 mm, 127 mm Our T51 Retrac button bit is a top hammer rock drill bit, mainly used for medium-hard to hard rock conditions.read more
-
T35 MF Drill RodT35 MF drill rod is a widely adopted threaded top-hammer rock drill rod for mining, tunnelling and geotechnical drilling.read more
-
R32 MF Speed Drill RodMF-Rod R32-R32-Rd32 with 11/4" Rope Thread (32mm), carburized, is a male-female extension rod for top hammer rock drilling.read more
-
Retrac Drill BitExplore top-tier retrac drill bits engineered exclusively for construction, mining, and Tunnel Engineering. Crafted with uncompromising precision, long-lasting durability, and exceptional drilling...read more
-
Domed Button BitsTired of inaccurate or undersized pilot holes in large-diameter projects?read more
Our precision-engineered Dome button bit effortlessly enlarge pre-drilled holes to your required exact diameter,... -
Taper Drill BitsTired of subpar drilling performance and premature bit wear when tackling tough rock formations? Our taper drill bits are engineered with hot-pressed carbide bonded to the skirts—a game-changing...read more
-
Cross BitsEngineered with cross-shaped carbide cutting heads, tapered cross bits deliver fast, aggressive penetration in hard rock. Their optimized design ensures efficient chip removal and strong wear...read more
1. Threaded Button Bits: Diameters, Threads and Designs
Our threaded button bits are available in the following specifications:
| Specification | Available options |
|---|---|
| Thread types | R22, R25, R28, SR28, R32, SR32, R35, SR35, R38, T38, T45, T51, ST58, GT60, ST68 |
| Bit diameter | 32–152 mm |
| Face designs | Flat Face, Drop Center, Power Face |
| Carbide button types | Spherical, Ballistic, Parabolic |
Our threaded button bits use alloy steel and cemented carbide. Manufacturing processes include hot pressing technology and vacuum heat treatment.
2. Threaded Drill Rods: Types and Specifications
Super Rock offers several threaded drill rod configurations for top hammer drilling systems.
| Specification | Available options |
|---|---|
| Rod types | Hex. Drifter Rod, Shank End Rod, Round Drifter Rod, Hex. Speed Rod, Round Extension Rod, Round Speed Rod, Round Guide Rod, Guide Tube |
| Thread specifications | R25, SR25, R28, SR28, R32, SR32, R38, T38, T45, T51, GT60 |
| Rod profiles | Hex. 25, Hex. 28, Hex. 32, Hex. 35, Round 32, Round 39, Round 46, Round 52 |
| Rod length | 600–6100 mm |
| Wrench slot | With or Without |
Our threaded drill rods use 23CrNi3Mo steel, identified in our product information as equivalent to Sanbar 64, with overall carburizing treatment.
Super Rock states that this treatment can extend service life by 30%. This is a stated product benefit, not a guaranteed service-life result under every drilling condition.
3. Drill Tubes and Shank Adapters
Drill Tubes
Our drill tubes are available in the following specifications:
| Specification | Available options |
|---|---|
| Material | 23CrNi3Mo (Sanbar 64) |
| Thread types | R32, T38, T45, T51, ST58, ST68, GT60 |
| Tube diameters | Round 46, 56, 63, 65, 76, 87 |
| Length | 1525–4265 mm |
Epiroc Shank Adapters
Our Epiroc shank adapter range includes equipment series BBC 43, BBC 44, BBC 45, BBC 100, BBC 51, BBC 52, BBC 54 and BBC 120.
| Specification | Available options |
|---|---|
| Material | 23CrNi3Mo (Sanbar 64) |
| Thread types | R25, R28, R32, R35, R38, T38, T45, T51 |
| Diameter | 32–70 mm |
| Length | 273–885 mm |
Specific shank adapter selection depends on the drilling equipment model and connection specification.
4. Drill Rod Connections and Coupling Components
Super Rock supplies different top hammer drill rod coupling components for drilling tool assemblies.
- T35 MF Drill Rod: Features male and female threaded ends and connects directly to the shank adapter without requiring a separate coupling sleeve.
- Coupling Sleeve: Connects the shank adapter to an extension rod or joins two extension rods.
- Coupling Adapter: Connects components with different thread types or thread diameters.
- Bit Adapter: Also available in our top hammer drilling tool range.
5. Customization and Supply Support
As a top hammer drilling tools supplier, we provide customization options for product color, packaging and logo printing.
For threaded drill rods, the wrench slot is available with or without a slot. Threaded button bits offer different face designs and carbide button configurations.
Our top hammer drilling tool range covers button bits, rods, tubes, shank adapters and coupling components. We also provide technical support for drilling tool wear, breakage and corrosion, including failure diagnosis, improvement suggestions and ongoing technical follow-up.
6. Request a Quote for Top Hammer Drilling Tools
Send us your existing drill rod specifications, shank adapter model, thread details, product photos or required quantities.
Our team can review your requirements against our available product specifications and provide corresponding product information and a quotation.
Contact Super Rock Machinery Equipment (Qingdao) Co., Ltd. to discuss your top hammer drilling tool requirements.
