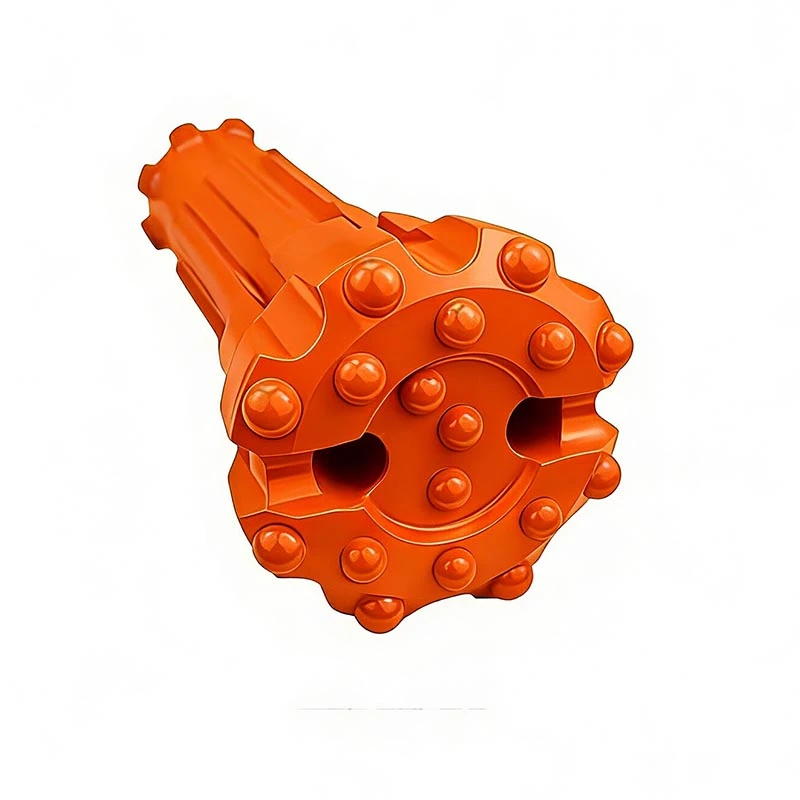

RC DTH Bit

As a key component in down-the-hole drilling systems, RC DTH bits integrate advanced structural design and precision manufacturing technology, which can efficiently penetrate various rock formations and ensure stable drilling performance.

RC (Reverse Circulation) DTH bits are dedicated rock-cutting tools designed for reverse circulation drilling operations, which are widely applied in geological exploration, mineral mining and engineering construction fields. It adheres to strict quality control standards in the production of RC DTH bits, selecting high-purity superior alloy steel with excellent toughness and strength as the base material, and matching it with high-density T.C (tungsten carbide) buttons with high hardness and wear resistance. The combination of these two high-quality materials ensures that the bits can withstand intense impact forces and abrasive wear during high-speed drilling, while maintaining structural integrity and stable cutting performance.

The production process of RC DTH bits adopts advanced numerical control machining technology and precision heat treatment process. The whole production process is strictly monitored from material selection, blank forging, precision machining to surface treatment. This strict production control system ensures that each RC DTH bit meets rigorous performance criteria, delivers consistent and reliable quality, and provides solid support for stable operation even in complex and harsh drilling environments such as hard rock, broken rock and high-abrasion formations.

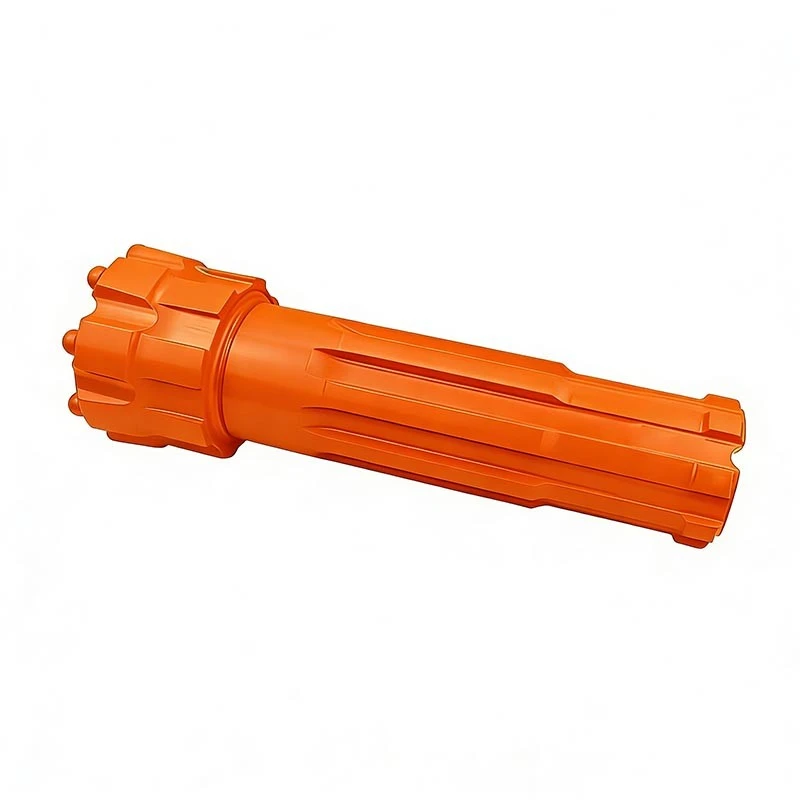

1). 4'' RC Bits:Diameter (104mm-127mm); Shank type: RE004/RE004R;
RE542

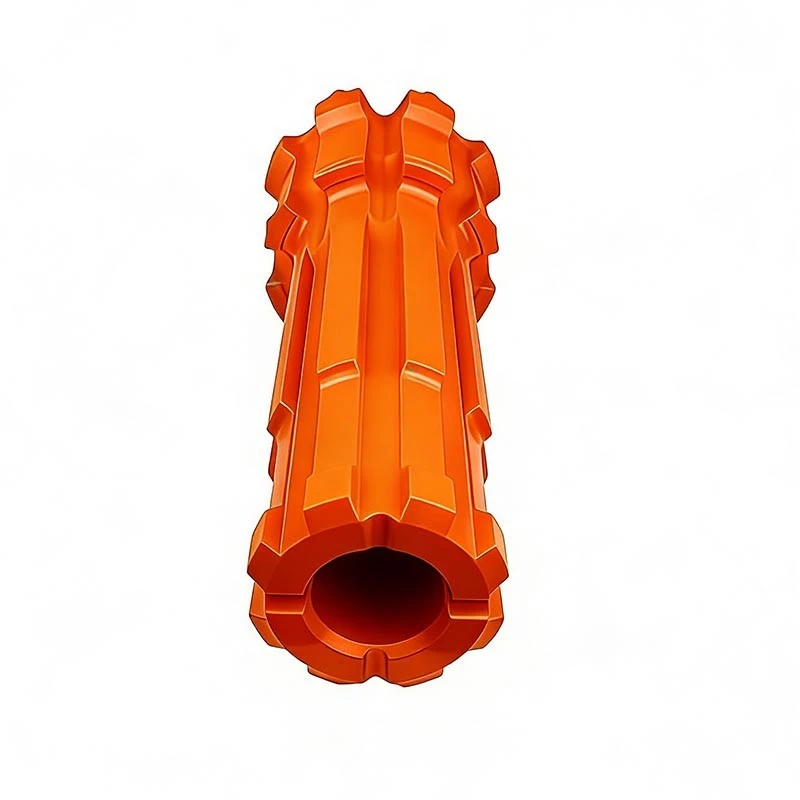

2). 5'' RC Bits:Diameter(113mm-146mm) ; Shank type: RE543,RE545,RE547;PR40,PR52,PR54; MX5456
3). 6'' RC Bits: Diameter(152-190mm); Shank type: RC62/RC62R;
4). 8'' RC Bits: Diameter(190-250mm); Shank type: RC82/RC82R;
5). 10'' RC Bits: Diameter(250-370mm); Shank type: RC100/RC100R.

RC DTH bits are engineered with a variety of outstanding product features, which effectively improve drilling efficiency and reduce operating costs for users. These features are closely combined with the actual needs of drilling operations, fully reflecting the professionalism and practicability of the product.

The core characteristics of RC DTH bits are as follows:

• High-Strength T.C Carbide Buttons: The bits are equipped with high-purity T.C carbide buttons with a hardness of HRA90 or above, which are precisely welded on the bit face. The button layout adopts a scientific staggered design, which maximizes rock-breaking efficiency and avoids mutual interference between buttons during cutting. At the same time, the carbide buttons have excellent impact toughness, which can effectively resist the impact of hard rock and reduce button damage.
• Superior Alloy Steel Body: The bit body is made of forged alloy steel with high tensile strength and fatigue resistance, which undergoes quenching and tempering heat treatment to improve the overall hardness and toughness of the bit body. This enables the bit to withstand the huge torque and impact force generated during drilling, and effectively prevents the bit body from deformation or fracture.
• Optimized Reverse Circulation Channel: Combined with the characteristics of reverse circulation drilling, the bit is designed with a smooth and unobstructed circulation channel. The channel structure is optimized through fluid dynamics simulation, which can effectively improve the speed of slag discharge and reduce the accumulation of rock slag in the borehole, thereby avoiding bit jamming and improving drilling efficiency.
• Wear-Resistant Surface Treatment: The surface of the bit body and skirt undergoes specialized nitriding treatment and anti-corrosion coating processing. The nitriding layer can significantly improve the surface hardness and wear resistance of the bit, while the anti-corrosion coating can effectively resist the erosion of underground water and corrosive media, further extending the service life of the bit.
• Broad Compatibility: The bits are available in a full range of sizes and specifications, covering common drilling diameters from 76mm to 203mm. They are compatible with most mainstream reverse circulation DTH hammers on the market, and can be flexibly matched according to different drilling equipment and project requirements.

Due to its excellent performance and stable quality, RC DTH bits are widely used in various fields that require efficient and precise drilling. They can adapt to different geological conditions and drilling requirements, and play an important role in promoting the smooth progress of projects.

The main application scenarios of RC DTH bits include:

• Geological Exploration Drilling: It is widely used in geological survey, mineral prospecting and core sampling projects. The reverse circulation function of the bit can effectively ensure the integrity of the core sample, reduce sample contamination, and provide accurate data support for geological analysis and mineral resource evaluation.
• Mining Industry: Suitable for blast hole drilling, ore body exploration and production drilling in open-pit mines and underground mines. The high rock-breaking efficiency of the bit can significantly shorten the drilling cycle, improve the efficiency of ore extraction, and reduce the mining cost. It is especially suitable for drilling in hard rock mines such as iron ore, copper ore and gold ore.
• Quarrying Operations: Ideal for drilling in quarries of granite, basalt, limestone and other stone materials. It can efficiently drill blast holes and splitting holes, ensure the stability of the rock mass during stone extraction, and improve the yield and quality of finished stone materials.
• Water Well and Geothermal Drilling: Used in water well drilling for agricultural irrigation, industrial water supply and residential water use, as well as geothermal energy development projects. The bit can efficiently penetrate various aquifers and rock formations, and the smooth circulation channel is conducive to the discharge of drilling fluid and rock slag, ensuring the smooth progress of drilling projects.
• Engineering Construction Drilling: Applied in foundation piling, ground anchoring, tunnel construction and other civil engineering projects. It can adapt to complex ground conditions such as urban hard rock foundations and mountainous broken rock formations, and provide reliable drilling support for the construction of high-rise buildings, bridges and tunnels.
