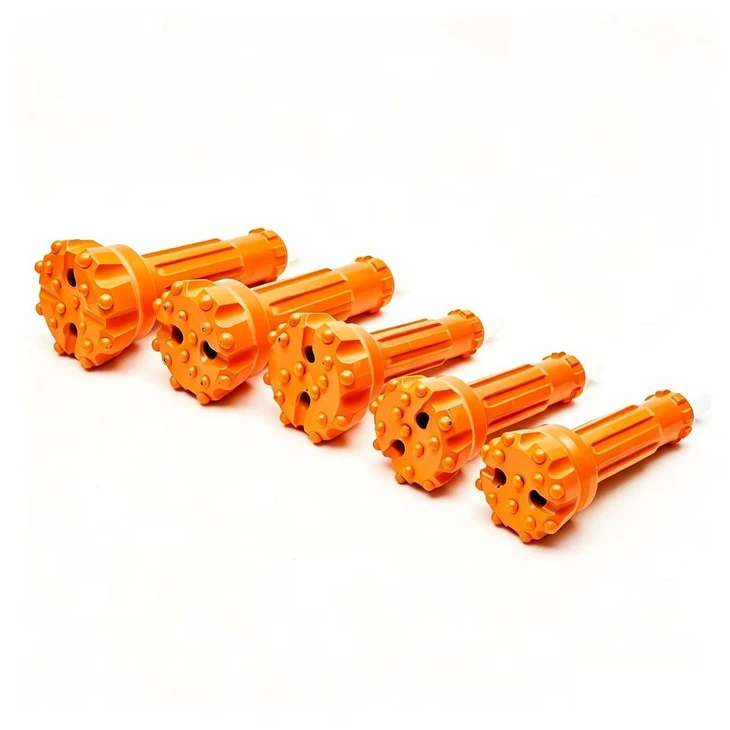

Products Description
Sophisticated manufacturing technologies are applied in the production process, ensuring that our DTH bits achieve higher performance standards and more reliable quality, which lays a solid foundation for stable operation in various drilling scenarios.
Specification
|
DHD shank Bits |
Bit Dia. |
No. |
Gauge |
Front |
Weight |
|
|
mm |
inch |
Air Holes |
Buttons |
Buttons |
(Kgs) |
|
|
DHD3.5 |
85 |
3 11/32" |
2 |
6×φ13 |
4×φ12 |
4.2 |
|
90 |
3 1/2" |
2 |
6×φ14 |
4×φ12 |
4.5 |
|
|
95 |
3 3/4" |
2 |
6×φ14 |
4×φ13 |
4.8 |
|
|
100 |
3 7/8" |
2 |
8×φ12 |
6×φ12 |
5 |
|
|
105 |
4 1/8" |
2 |
8×φ13 |
6×φ12 |
5.5 |
|
|
DHD340 |
105 |
4 1/8" |
2 |
6×φ14 |
5×φ13 |
9 |
|
110 |
4 1/4" |
2 |
7×φ13 |
6×φ13 |
9.3 |
|
|
115 |
4 1/2" |
2 |
7×φ14 |
6×φ13 |
10 |
|
|
120 |
4 3/4" |
2 |
8×φ14 |
6×φ14 |
11 |
|
|
127 |
5 |
2 |
8×φ14 |
7×φ14 |
12 |
|
|
DHD350 |
133 |
5 1/4" |
2 |
7×φ16 |
6×φ14 |
15 |
|
140 |
5 1/2" |
2 |
7×φ18 |
7×φ14 |
16 |
|
|
146 |
5 3/4" |
2 |
8×φ18 |
7×φ14 |
17 |
|
|
152 |
6" |
2 |
8×φ18 |
8×φ14 |
17.5 |
|
|
165 |
6 1/2" |
2 |
8×φ18 |
8×φ16 |
18.5 |
|
|
DHD360 |
152 |
6" |
2 |
8×φ16 |
8×φ16 |
26 |
|
165 |
6 1/2" |
2 |
8×φ18 |
8×φ16 |
28 |
|
|
178 |
7" |
2 |
8×φ18 |
8×φ18 |
30.5 |
|
|
190 |
7 1/2" |
3 |
9×φ18 |
9×φ16 |
34 |
|
|
203 |
8" |
3 |
9×φ18 |
9×φ18 |
36 |
|
|
DHD380 |
195 |
7 11/16 |
3 |
9×φ18 |
9×φ16 |
32 |
|
203 |
8" |
2 |
9×φ18 |
10×φ18 |
41 |
|
|
216 |
8 1/2" |
2 |
10×φ18 |
12×φ16 |
49 |
|
|
254 |
10" |
3 |
11×φ18 |
17×φ16 |
71 |
|
|
305 |
12" |
4 |
12×φ18 |
29×φ16 |
95 |
|
|
DHD1120 |
305 |
12" |
4 |
12×φ18 |
36×φ16 |
152 |
|
311 |
12 1/4" |
4 |
12×φ18 |
36×φ16 |
157 |
|
|
330 |
13" |
4 |
16×φ18 |
42×φ16 |
165 |
|
|
356 |
14" |
4 |
16×φ19 |
48×φ16 |
178 |
|
|
381 |
15" |
4 |
16×φ19 |
48×φ18 |
198 |
|
Key Features
Engineered to deliver top-tier performance and exceptional durability, DHD DTH bits are specifically designed for harsh drilling environments. Their robust structural design enables them to withstand intense percussive forces and abrasive working conditions.
Meticulous material selection and advanced processing techniques contribute to an extended service life and consistent, efficient drilling performance, making these bits a trustworthy option for a wide range of rock drilling applications.
The main features of DHD DTH bits are as follows:
- High-Quality Alloy Buttons: Equipped with premium carbide buttons, which are strategically arranged to maximize rock-breaking efficiency and enhance wear resistance. This design effectively extends the service life of the bits.
- Superior Alloy Steel Skirts: The skirt part of each bit is crafted from high-grade alloy steel, which provides excellent structural strength and rigidity. This enables the bits to cope with the stresses encountered during drilling and maintain borehole accuracy.
- Comprehensive Sizes & Broad Compatibility: DHD DTH bits are available in a full range of sizes and specifications. They are compatible with most mainstream DTH hammers on the market, including those equipped with DHD shank systems.
Practical Applications
As highly versatile drilling tools, DHD DTH bits are designed for a variety of applications where efficient and precise penetration of hard rock is essential. Their robust construction and optimized design ensure outstanding performance across diverse geological conditions, making them an indispensable tool for many demanding projects.
The primary applications of DHD DTH bits include:
- Mining Industry
- Quarrying Operations
- Water Well Drilling
- Geothermal Well Drilling
- Foundation Piling Projects
- General Construction Works
