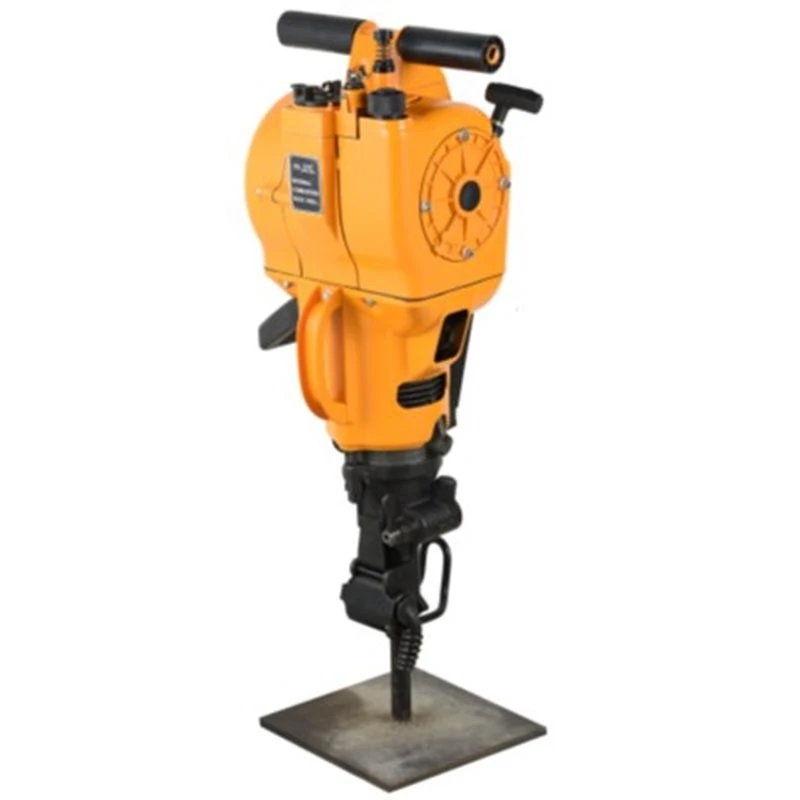

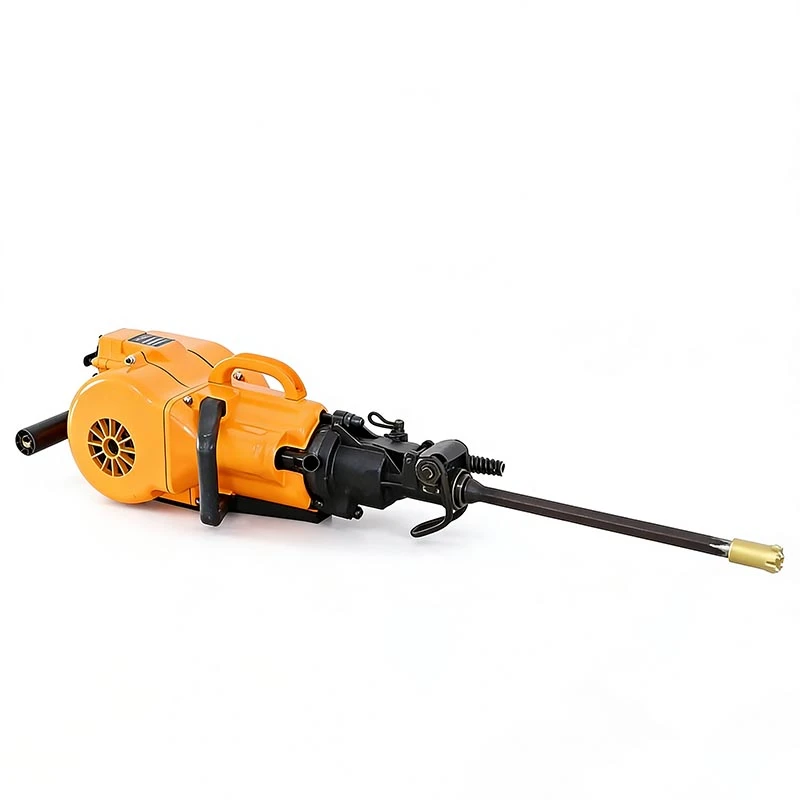

KATDRILLS YN27C Rock drill
The YN27C is a handheld internal combustion (gasoline-powered) rock drill - an all-in-one tool integrating a small gasoline engine, air compressor, and drilling mechanism into a single compact unit. It works independently without external air compressors or electricity, making it highly versatile for remote and off-grid job sites.
Parameters
|
Weight of main machine |
27kg |
|
Overall dimensions |
746*315*229mm |
|
Type of engine |
Single cylinder cooled two strokes |
|
Cylinder diameter& stroke of piston |
φ58*70mm |
|
Rotating speed of engine |
≥2450/min |
|
Type of carburetor |
Hand needle valve, no floating type |
|
Ignition |
Controllable silicon,contact-less system |
|
Drilling speed |
≥250mm/min |
|
Drilling hole diameter |
φ28-42mm |
|
Max drilling depth |
6m |
|
Fuel consumption |
≦0.121L |
|
Tank capacity |
≥1.14L |
|
Mixture ratio of gasoline lubricating oil |
12:1 |
|
Drill rod and breaker |
Hexagonal 22*108mm |
|
Rotatiing speed of drill rod |
≥200r/min |
|
Clearance of spark plug |
0.5-0.7mm |
Application
Ideal for mining, quarrying, road construction, tunneling, municipal works, and emergency rescue. Perfect for small-scale rock drilling, blasting preparation, slope stabilization, foundation work, and rock breaking in areas without power access.
Features
- Multifunctional: Drills holes, breaks rock, tampers soil, and chisels materials - switch between functions easily by adjusting the swing arm (no need to replace internal parts)
- Lightweight: Main unit weighs just 27 kg for easy portability and operation
- Durable: Works reliably in extreme temperatures (+40°C to -40°C) and harsh environments
- Efficient: Drills up to 6 meters deep with a diameter of 34–42 mm in medium-hard rock formations
- Self-sufficient: Built-in air compressor blows away rock dust during drilling
